IntelliTone™ Pro 200 Toner and Probe Kit

IntelliTone™ Pro 200 Toner and Probe Kit

Sold out
$537.90 - $537.90
$537.90
$537.90 - $537.90
$537.90
- +
Availability:
Out of stock

Key Features:

  • Locates cables safely and effectively on active networks

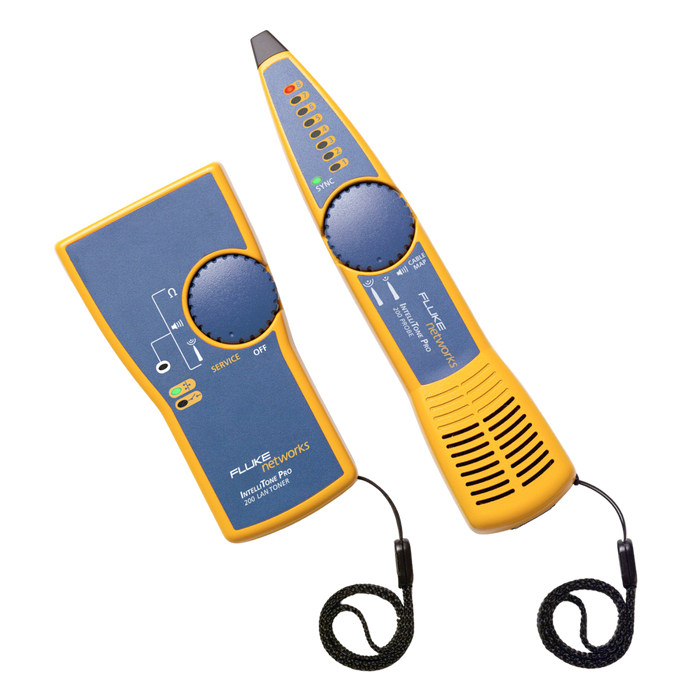

  • Kit includes IntelliTone™ toner, probe, adapters, patch cables, and test leads (carry case sold separately)
  • Verifies twisted pair installation with end to end continuity test
  • IntelliTone™ digital toning eliminates noise and false signals
  • SmartTone analog toning isolates individual wire pairs

    GET ADVANCED VISION FOR TRACING AND LOCATING NETWORK CABLES MORE EFFECTIVELY AT PATCH PANELS, SWITCHES, TERMINATION BLOCKS, OR HIDDEN WITHIN BUNDLES. OUR NEW INTELLITONE PRO 200 LAN TONER AND PROBE KITS FINDS THE CABLES OTHERS CAN’T

    The IntelliTone™ Pro 200 LAN Toner and Probe Series from Fluke Networks is the first Network cable tester to offer digital and analog signaling all in one network toner and probe. That means it’s equipped with the most powerful cable tracing and location technologies for any work environment. Use digital mode to trace and locate data cabling safely and effectively on active networks. Use analog mode to isolate wire pairs and trace voice, audio, and video cabling. The IntelliTone™ Pro 200 LAN Toner and Probe Series from Fluke Networks gives you superior vision for tracing and locating cables hidden in floors, ceilings, walls, and in bundles. This network cable toner and probe’s breakthrough digital technology makes it the first tool to tone and trace safely and effectively on active networks.

    Operating temperature 0°C to 40°C
    Storage temperature -20°C to°C
    Operating relative humidity)
    (% RH without condensation)    		 95% (10°C to 35°C)
    75% (35°C to 40°C)
    Uncontrolled <10°C
    Vibration Random, 2g, 5Hz-500Hz
    Shock 1m drop test
    Safety EN 61010-1, Category: None
    Altitude 3000m
    EMC EN 61326-1, FCC Part 15 B
    Battery type and life 9V alkaline (NEDA 1604A or IEC 6LR61); 20 hours typical
    Applications Copper cabling media including;
    75 or 50 Ohm Coaxial cable, two Conductor control, security, generic cabling.
    10Base-T or 10/100Base-T Datacom networks, UTP cable, Shielded Twisted Pair supported in Cable Map function of the IntelliTone 200
    Dimensions 14.1cm x 7.5cm x 3.2cm
    Display LED
    Control Thumbwheel switch
    Toner interface Main Mod8 port for tone generation on all 4 pairs of UTP / STP cabling. F Connector for coaxial cabling Banana Jack Plugs (2) - two conductor wiring
    Toner frequency IntelliTone™ signal: encoded digital signal Analog SmartTone signal: 500 - 1200Hz, 4 songs
    Ouptut power 5V p-p
    Auto power down Turns off automatically after 2.5 hours of inactivity
    Dimensions 22.2cm x 4.8cm x 3.2cm
    Display (8) LED indicators, Sync LED indicator
    Audio IntelliTone: Microprocessor controlled audio files Analog: Detected toner signal
    Control Thumbwheel switch, volume control wheel
    Tone detection Detects IntelliTone™ digital signal for Locate, Isolate, and Cable Map Detects analog SmartTone signal (500-1200Hz) and other analog toners.
    Toner interface Main Mod8 port for Cable Map on all 4 pairs of UTP / STP cabling.
    Auto power down Turns off automatically after 1 hour of inactivity

    GET ADVANCED VISION FOR TRACING AND LOCATING NETWORK CABLES MORE EFFECTIVELY AT PATCH PANELS, SWITCHES, TERMINATION BLOCKS, OR HIDDEN WITHIN BUNDLES. OUR NEW INTELLITONE PRO 200 LAN TONER AND PROBE KITS FINDS THE CABLES OTHERS CAN’T

    The IntelliTone™ Pro 200 LAN Toner and Probe Series from Fluke Networks is the first Network cable tester to offer digital and analog signaling all in one network toner and probe. That means it’s equipped with the most powerful cable tracing and location technologies for any work environment. Use digital mode to trace and locate data cabling safely and effectively on active networks. Use analog mode to isolate wire pairs and trace voice, audio, and video cabling. The IntelliTone™ Pro 200 LAN Toner and Probe Series from Fluke Networks gives you superior vision for tracing and locating cables hidden in floors, ceilings, walls, and in bundles. This network cable toner and probe’s breakthrough digital technology makes it the first tool to tone and trace safely and effectively on active networks.

    Operating temperature 0°C to 40°C
    Storage temperature -20°C to°C
    Operating relative humidity)
    (% RH without condensation)    		 95% (10°C to 35°C)
    75% (35°C to 40°C)
    Uncontrolled <10°C
    Vibration Random, 2g, 5Hz-500Hz
    Shock 1m drop test
    Safety EN 61010-1, Category: None
    Altitude 3000m
    EMC EN 61326-1, FCC Part 15 B
    Battery type and life 9V alkaline (NEDA 1604A or IEC 6LR61); 20 hours typical
    Applications Copper cabling media including;
    75 or 50 Ohm Coaxial cable, two Conductor control, security, generic cabling.
    10Base-T or 10/100Base-T Datacom networks, UTP cable, Shielded Twisted Pair supported in Cable Map function of the IntelliTone 200

    Dimensions 14.1cm x 7.5cm x 3.2cm
    Display LED
    Control Thumbwheel switch
    Toner interface Main Mod8 port for tone generation on all 4 pairs of UTP / STP cabling. F Connector for coaxial cabling Banana Jack Plugs (2) - two conductor wiring
    Toner frequency IntelliTone™ signal: encoded digital signal Analog SmartTone signal: 500 - 1200Hz, 4 songs
    Ouptut power 5V p-p
    Auto power down Turns off automatically after 2.5 hours of inactivity

    Dimensions 22.2cm x 4.8cm x 3.2cm
    Display (8) LED indicators, Sync LED indicator
    Audio IntelliTone: Microprocessor controlled audio files Analog: Detected toner signal
    Control Thumbwheel switch, volume control wheel
    Tone detection Detects IntelliTone™ digital signal for Locate, Isolate, and Cable Map Detects analog SmartTone signal (500-1200Hz) and other analog toners.
    Toner interface Main Mod8 port for Cable Map on all 4 pairs of UTP / STP cabling.
    Auto power down Turns off automatically after 1 hour of inactivity
